SAPPHIRE Silver-Plated Star-Quad DC Cable

PLEASE NOTE: UpTone Audio's office and workshop will be closed from May 30th to June 21st (for a long-planned vacation). If you order a SAPPHIRE DC cable via this page during that period it will not ship out until June 23rd.

This high performance DC cable is constructed with some of the finest wire available.

The topology of the wire is inductance-lowering 'star-quad', ideal for DC power supplies.

There are four heavy gauge (AWG 18) conductors, themselves comprised of stranded, silver-plated copper wire.

The insulation/dielectric of each conductor is PTFE (Teflon), and the star-quad bundle is surrounded by a complete silver-plated braided shield.

On top of the shield is a tight, durable jacket. And on top of the jacket is a beautiful and soft woven antistatic sleeve.

Device end plugs are the excellently machined and gold plated Oyaide DC-2.5G or DC-2.1G, standard 5.5mm other size DC barrels--with silicone spacer rings to adjust for DC jack insertion depth.

We offer these cables primarily for UpTone JS-2 or JS-4 owners. The JS-2's output jacks are 5.5mm x 2.5mm so the versions with DC-barrel plugs both ends will always be that size at the power supply end. (marked with a red band behind the shell).

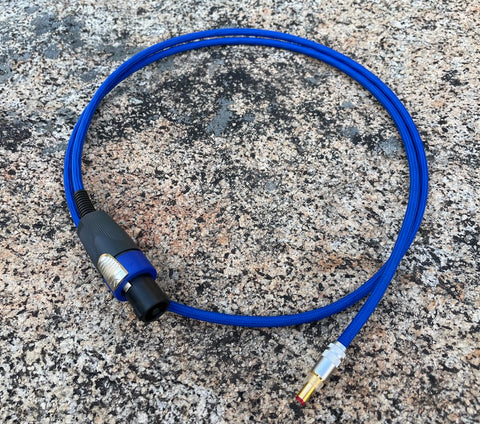

The DC output jacks of our advanced new JS-4 are 4-pole Neutrik SpeakON type. So we now offer our SAPPHIRE cables with that plug at supply end and either 5.5mm x 2.5mm or 5.5mm x 2.1mm at device end.

You simply need to determine the DC jack size of the equipment you are powering and choose device-end plug size of either 5.5mm x 2.5mm or 5.5mm x 2.1mm. (Let us know if you are unsure of which size to choose; we know the DC jack size for many components and if we are unsure we can tell you a easy trick to make a definitive determination.)

Length is always 1.5m (5-feet). Other than the above we generally do not offer custom terminations or other lengths.

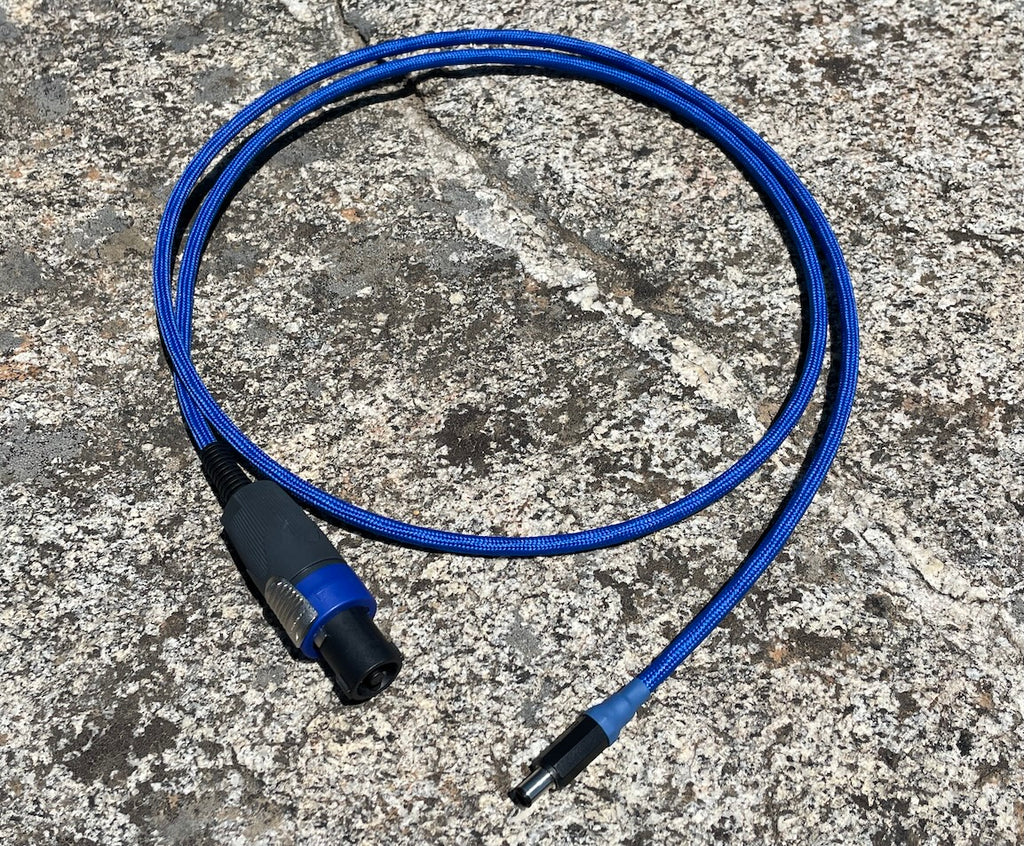

UpTone is a MUTEC dealer, the popular REF10 Nano can be powered from an external 15VDC supply, and our new JS-4 is wonderful match for that fine reference clock. Yet the DC input jack of the REF10 Nano is an unusual type accepting only a special Lumberg brand plug. Therefore we offer a version of the SAPPHIRE cable with SpeakON >> Lumberg. Please order that only if you own both a JS-4 and a Mutec REF10 Nano.

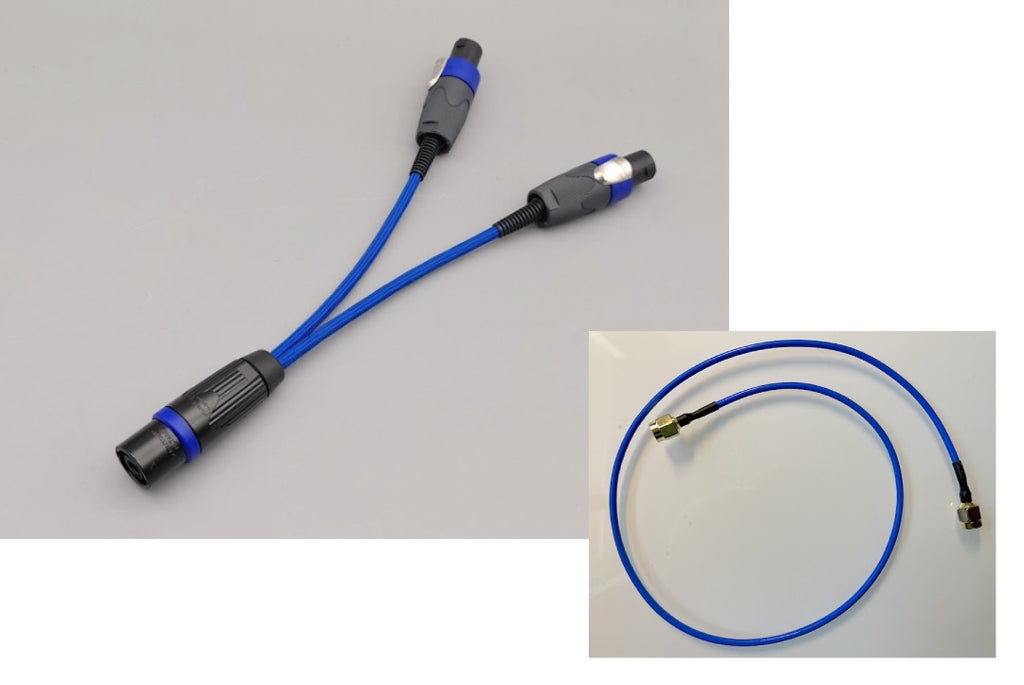

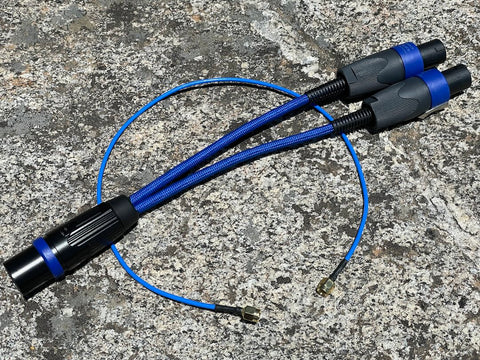

The UpTone JS-4 triple-regulated dual-output power supply has a unique feature which allows for two units to be connected in parallel—to deliver up to 8 amps (or one 6A output and one 2.1A out based on setting of the MODE switches. Doing so requires a both a specially built 'Y' cable and a 20-inch coaxial/SMA cable (to link the two units for equal load sharing).  We sell these cables together. See photos.
